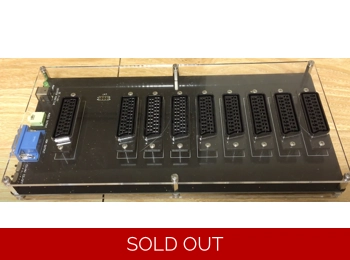

GSCART_SWITCH 8:2 scart/db9

The main feature of this revision is Sync on Green (SoG) support. The switch will detect the SoG signal and convert it to standard RGBS format. The sync is separated (SD) / forwarded (HD) from green to the standard sync line and can be stripped from green if needed (DIP This solves incorrect color level detection for some problematic displays.
In addition, full audio / video input protection has been added to minimize the damage when incompatible equipment is connected. Please take into account that protection won’t make faulty equipment work, it’s there to protect the hardware.
The other features are Micro-USB power supply and DIP switch settings.

Features (v5.3):
8 SCART inputs
2 outputs (1 SCART, 1 DB9)
Simultaneous output support
Design with focus on video quality
Automatic switching (sync based, no SCART pin 8 / pin 16 lines have to be routed in the cable)
HD signal supported (up to 1080p)
Sync regeneration
Sync on Green to RGBS conversion support
Full audio / video input protection
PSU polarity & overvoltage protection
High quality universal power supply is included

---
